serviceable range
■ Dangerous places in Zone 1 and Zone 2 or Zone 21 and Zone 22:
■ ⅡA, ‖B and ‖C explosive gas environment;
■ Indoor and outdoor (IP54, IP65*);
■ Temperature group: T1~T6;
■ Used in petroleum, chemical, aerospace, military and other places.

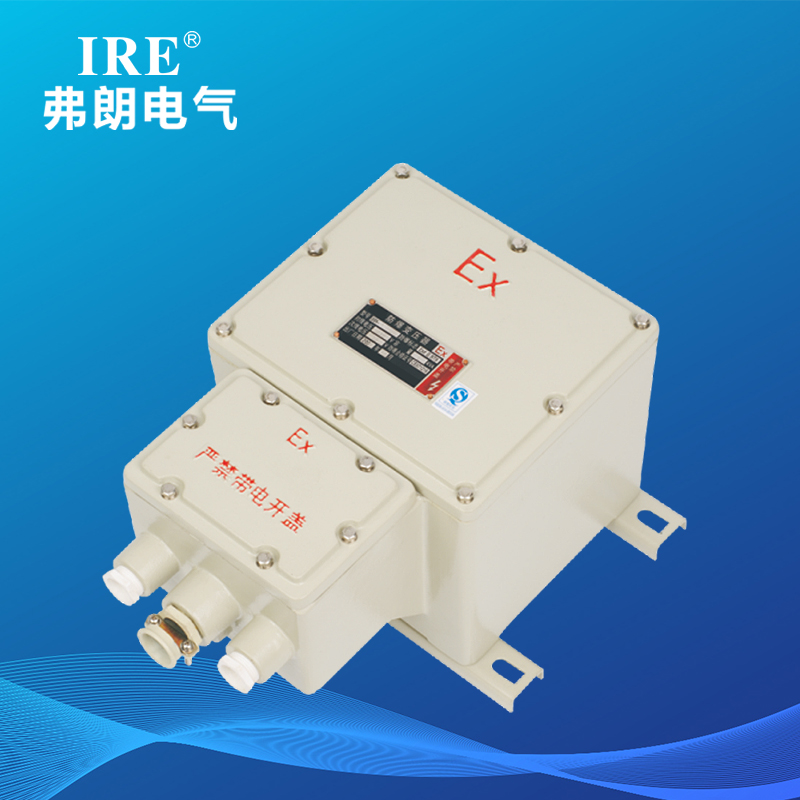

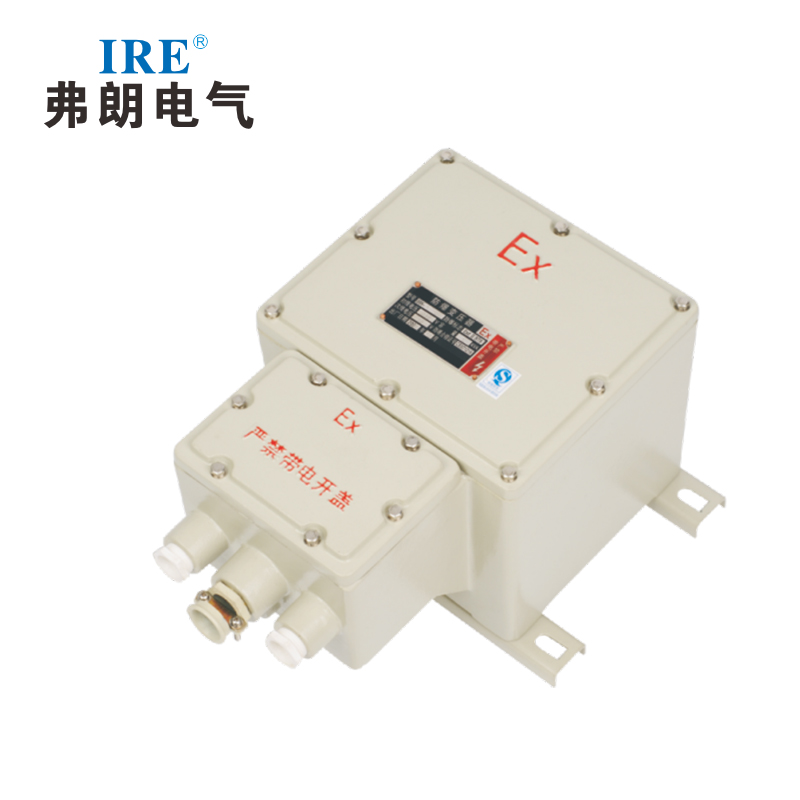

Product features
■ The shell is made of high-strength alloy aluminum by one-time die casting, and the surface is cleaned by high-speed shot blasting and then sprayed with high-voltage electrostatic plastic. The shell has compact and reasonable structure, high material density, good strength, excellent explosion-proof performance, strong adhesion of plastic powder on the surface, good corrosion resistance, smooth surface and elegant appearance;
■ Wiring cavity and main cavity are independent respectively;
■ Steel pipes, explosion-proof flexible pipes, explosion-proof cables and wiring can be used.
Type | Capactiry | primary voltage | secondary voltage | Ex-mark |
| BBK-0.2 | 0.2 |
220/380 |
6.3,12,24,36,127 | Ex de IIB T6 Gb Ex de IIC T6 Gb Ex tD A21 IP65 T80℃ |
| BBK-0.25 | 0.25 | |||
| BBK-0.3 | 0.3 | |||
| BBK-0.4 | 0.4 | |||
| BBK-0.5 | 0.5 | |||
| BBK-1.0 | 1.0 | |||
| BBK-2.0 | 2 |
| Inlet and outlet thread(G°) | Cable outer dia.(mm) | Erosion-proof class | Degree of protection | ||
| lnlet | outline | lnlet | outline | ||
| 1~11/4 | 3/4~1 1/4 | φ14~φ18 φ15~φ23 | φ10~φ18 φ15~φ23 | IP54/IP65 | IP65、IP65* |
